GlueScan AOI
Adhesive Dot Inspection System

WHAT IS GlueScan?

GlueScan provides a simple and user-friendly alternative to inaccurate and time-consuming manual inspection methods or expensive, high-end AOI systems.

GlueScan uses a simple Windows user interface integrated with an automatic table and image-processing unit. This combination allows 100% inspection of adhesive placement on PCBs after stenciling, dispensing or stamping.

HOW DOES GlueScan WORK?

GlueScan's integration within the production line provides 100% verification of absence / presence of glue dots before entering the placement environment.

Each PCB or substrate is placed from the dispensing or printing machine into GlueScan for 100% inspection. The PCB is then accepted and returned to the surface mount machines or rejected. No more surprises!

QUICK & SIMPLE PROGRAMMING

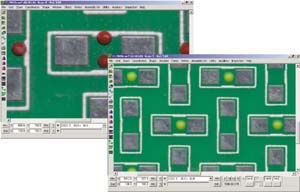

GlueScan is quickly programmed from a golden board in just a few minutes.

INCREASE YIELD & IMPROVE OVERALL EQUIPMENT EFFICIENCY

Missing adhesive can result in very expensive equipment repairs, lost production time and extensive rework. GlueScan's powerful inspection process increases product yield by ensuring accurate glue deposition. Thus, assisting with secure component placement and eliminating potential damage to nozzles and other delicate placement machine elements.

Missing glue dots are automatically detected. Problems are detected and eliminated early in the production process!

SIMPLICITY

GlueScan set up is fast and easy. In production, each board is placed on the automatic table, is shuttled in, automatically aligned and checked for accuracy with a PASS or FAIL inspection in seconds.




WHY USE GlueScan?
  • Profitability: Increases print yields. Reduces rework.
  • Mandatory: 100% automatic inspection of adhesive dots after dispensing or printing.
  • Security: Confirm glue dot absence / presence.
  • Necessity: Detect errors before damaging down line machines.
  • Flexibility: Inspect a wide variety of board sizes and shapes.

DESKTOP MODULE

Off-line Inspection


System Specifications

  • Maximum Board Size: 18" X 24" (45.7cm X 61.0cm)
  • Maximum Inspection Area: 16.5" X 22" (41.9cm X 55.9cm)
  • Length: 41" (104.1cm)
  • Width: 29" (73.7cm)
  • Height: 18" (45cm)
  • Weight: 150lbs. (55.95kg.)
  • Golden board required for programming

Desktop Module Computer Requirements*

  • Pentium III (1GHz) Personal Computer
  • 60 GB HD, 512 MB RAM
  • Windows 95/NT/Me requires: 1 ISA slot, 1 PCI slot, 1 Parallel port
  • Windows 98(SE)/2000 requires: 2 USB ports
  • CD-ROM (CD-RW for archive purposes)
  • Monitor (17" or larger)
  • Printer
*Recommended customer supplied minimum PC requirements


CONVEYOR MODULE

In-line Inspection

System Specifications

  • Maximum Board Size: 18" X 32" (45.7cm X 81.3cm)
  • Maximum Inspection Area: 16.5" X 22" (41.2cm X 55.8cm)
  • Minimum Conveyor Rail Width: 2" (5.1cm)
  • Minimum Board Thickness: 0.020" (.05cm)
  • Width: 39" (99.06cm)
  • Height: 70" (177.8cm)
  • Depth: 37" (93.98cm)
  • PC Controller/Flat Screen Monitor
  • Golden Board required for programming

Specifications subject to change without notice.
